A worm gear reducer is a power transmission component that changes motion in both direction and speed through a screw-shaped worm shaft and a gear wheel meshing with it. It significantly reduces the high speed coming from the motor in a single stage, while noticeably increasing the output torque. In short, it is useful wherever you need strong but controlled rotational motion.
So why is this reducer type used so often? The answer is largely hidden in its distinctive feature: self-locking. This structure, in which the load on the output side cannot drive the system backward, makes it indispensable in many mechanisms that require safety. Below, we clearly cover all the key topics, from its operating principle and advantages to application areas and correct selection criteria. Those who want to review the models can directly visit our worm gear reducers category.
What Is a Worm Gear Reducer and How Does It Work?

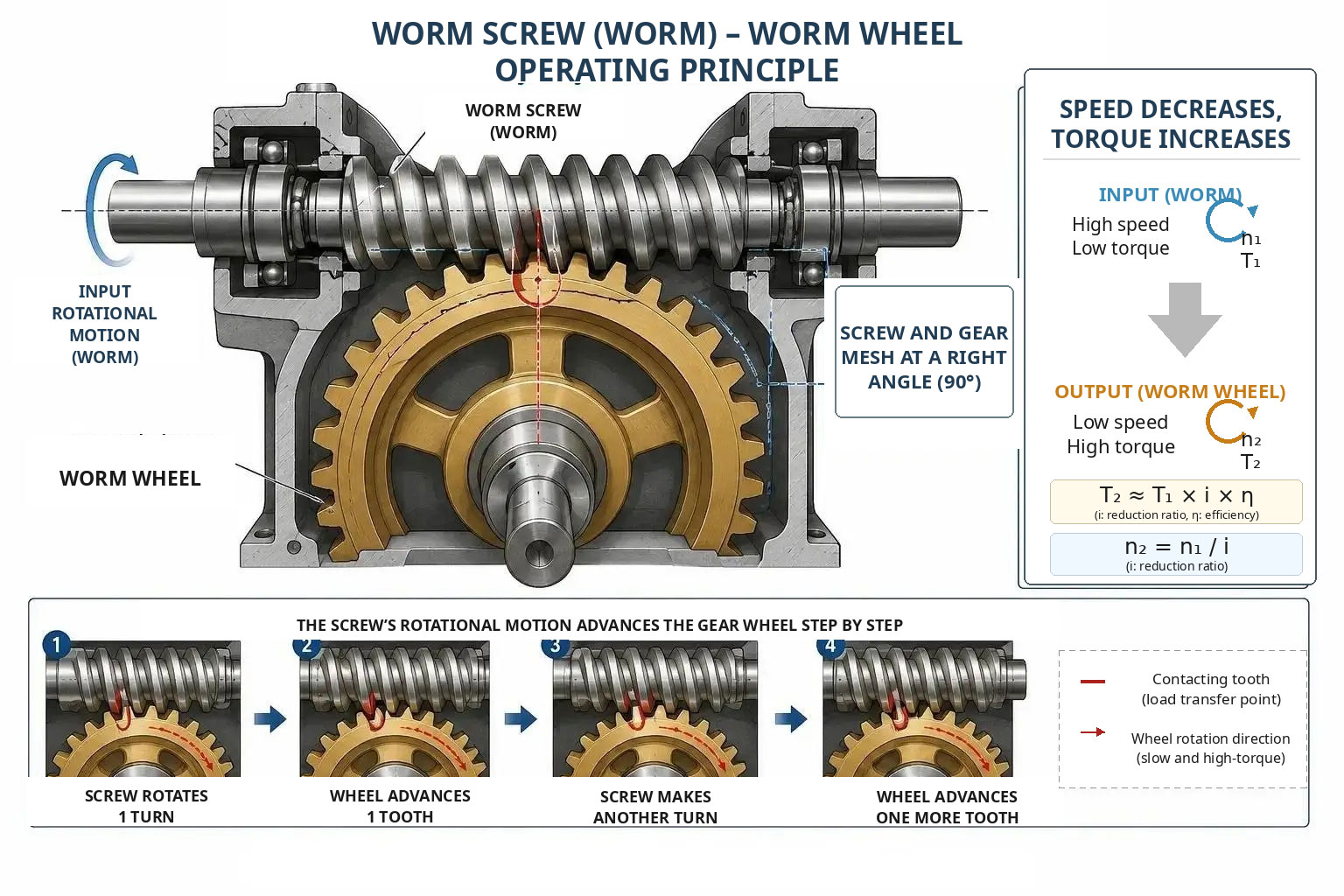

There are two parts at the heart of the system. One is the helical worm screw, and the other is the worm gear wheel that meshes with it. The rotational motion from the motor first reaches the worm screw; as the screw rotates, it advances the gear wheel tooth by tooth. With each full turn of the screw, the wheel turns by only one tooth, creating the large speed difference between input and output, in other words the reduction ratio.
The most practical aspect of this structure is that it transmits motion by changing its direction by ninety degrees. Since the input shaft and output shaft are positioned perpendicular to each other, the reducer can be easily installed in narrow and limited spaces. Because it both reduces speed and changes direction at the same time, you get two functions in a single unit.
The contact between the screw and the wheel works on a sliding principle. This makes lubrication a factor that directly determines performance. When the right oil is used, efficiency is maintained and the service life of the teeth is extended. If you are curious about the points that distinguish worm gear reducers from other types, our reducer types page, where you can see different structures together, is a good starting point.
Advantages of Worm Gear Reducers
There are concrete reasons why this reducer type is so common in industry. When we summarize the main highlights, the following picture emerges:
- High single-stage reduction: It offers a wide reduction range in a single housing without requiring an additional stage. This means savings in both space and parts.
- Compact structure: Thanks to the perpendicular positioning of the input and output shafts, it fits into small volumes and largely eliminates mounting space problems.
- Quiet operation: The sliding contact of the teeth suppresses noise. This is a clear advantage in facilities where silence is a priority.
- Cost-effective solution: Compared with achieving the same reduction ratio using other types, it is generally more affordable.
- Simple installation: Thanks to its low number of moving parts and straightforward structure, installation and maintenance are effortless.
Each of these items saves businesses both space and budget when selected for the right application. However, among the listed advantages, there is one feature that makes this reducer truly unique.
Self-Locking Feature
The most critical point that separates a worm gear reducer from many other types is that motion is one-way. The motor turns the worm screw and the wheel rotates, but in most designs, a force coming from the output shaft cannot turn the screw backward. This structure that prevents back-driving is called self-locking.
The value of this feature becomes clear in systems where you do not want the load to move unintentionally. In an elevator, barrier, or load-carrying conveyor, the load must remain fixed in place as soon as the motor stops. Thanks to self-locking, this safety is achieved without the need for an additional brake mechanism.
In short, this feature is not just a technical detail; it is a gain directly related to occupational safety. If the load sliding backward creates a serious risk, a worm gear reducer becomes unrivaled at this point.
Disadvantages and Points to Consider
Like every power transmission solution, this one also has limits that must be considered. The best-known issue is efficiency. Since motion is transmitted through sliding friction, efficiency may remain lower than other gear types, especially at high reduction ratios. This means that some energy turns into loss.
A certain amount of heating also occurs as a natural result of friction. In systems operating continuously and under heavy load, this heat must be kept under control with proper lubrication and, when necessary, cooling. Since these two topics are detailed subjects on their own, we only touch on them briefly here; what matters is that they are taken into account during the selection stage.
Another point is that the self-locking feature may have the opposite effect in some applications. In a mechanism that requires free rotation, this locking can create an undesirable situation. Therefore, defining the load and motion type correctly from the start prevents future problems. When determining the correct housing and ratio, our reducer selection guide can be helpful.
Application Areas of Worm Gear Reducers
Its compact structure and high reduction capability make this reducer useful in many different sectors. The most common areas are as follows:
- Conveyor and belt systems: It is widely used in material handling because it reduces belt speed and increases torque.
- Packaging and wrapping machines: Thanks to its regular and quiet motion, it adapts well to precision line applications.
- Elevators and barriers: Its self-locking feature provides safety by preventing unwanted movement of the load and arm.
- Mixers and agitators: It produces the slow but powerful rotation required for processing dense products.
- Solar tracker systems: It is preferred for precisely orienting panels throughout the day.
- Food line equipment: Its vibration-free operation and stable motion make it suitable for lines requiring hygiene and precision.
This diversity clearly shows why worm gear reducers appeal to such a broad user base. Developed specifically for the solar energy field, the Solar Tracker series is a prominent solution for this need. If you would like to review sector-specific examples, you can also visit our application areas page.
Worm Gear or Helical/Bevel Reducer? Which One Should Be Preferred in Which Case?
The choice between two reducer types is usually shaped by the priorities of the application. If you are looking for high efficiency and low heating, helical gear reducers stand one step ahead. This type provides an advantage in continuous and heavy-duty lines because it transfers energy with less loss. For drive requirements in different directions, bevel gear agricultural reducers come into play.
On the other hand, if the priority is high reduction, compact structure, and self-locking, a worm gear reducer is unquestionably the more suitable option. In systems where you do not want the load to slide backward, this feature alone becomes decisive. You can look at the table below to make the comparison more concrete:
| Feature | Worm Gear | Helical Gear |
|---|---|---|
| Single-stage reduction | Very high | Medium |
| Efficiency | Relatively low | High |
| Self-locking | Available | Not available |
| Noise level | Very quiet | Quiet |
| Cost | Economical | Medium-high |
The values in the table are for general comparison purposes; the final selection must always be verified according to the application’s reduction ratio, load type, and working environment. When you are undecided, evaluating these three variables side by side usually helps you move in the right direction.
Contact Us to Choose the Right Reducer
Determining the most suitable worm gear reducer for your application requires correctly reading the technical variables. When you evaluate the reduction ratio, torque requirement, and mounting conditions together, the result is a long-lasting and efficient system. At this point, consulting an experienced team instead of proceeding by estimation saves you time and cost.
Whether you are renewing an existing line or building a project from scratch, we can determine the most suitable model together. To get a quote and technical support, simply contact Remak Redüktör .
Frequently Asked Questions About Worm Gear Reducers
How much reduction ratio can a worm gear reducer provide in a single stage?
Worm gear reducers offer a very wide reduction range in a single stage, and this is one of their strongest advantages. While an additional stage is often needed to achieve the same ratio with other types, a worm gear reducer provides it in a single housing. The exact ratio is determined according to the speed and torque values required by the application.
Can a worm gear reducer be driven in reverse?
In most designs, no. Due to the self-locking feature, motion is transmitted one-way from the motor to the output, and a force coming from the output shaft cannot turn the screw backward. This is an advantage in systems that require safety, but a limitation to consider in applications that require free rotation.
Why are worm gear reducers preferred in solar tracker systems?
Solar panels must be oriented slowly and precisely throughout the day. A worm gear reducer produces this slow, controlled motion and, thanks to self-locking, prevents the panel from losing position due to external effects such as wind. These two features make it ideal for solar tracking systems.
What determines the service life of a worm gear reducer?
The main factors determining service life are the correct reduction ratio selection, sizing suitable for the load type, and regular maintenance. Leaving a safety margin in a reducer exposed to shock loads is more critical than in one working under a constant load. Proper lubrication and temperature control also slow tooth wear and extend service life.
Why is oil selection important in worm gear reducers?
In these reducers, motion is transmitted through sliding friction, so the oil directly affects efficiency and tooth durability. Oil with the wrong viscosity increases friction and accelerates heating, causing wear. A reducer operating with the right oil is both more efficient and longer lasting.
