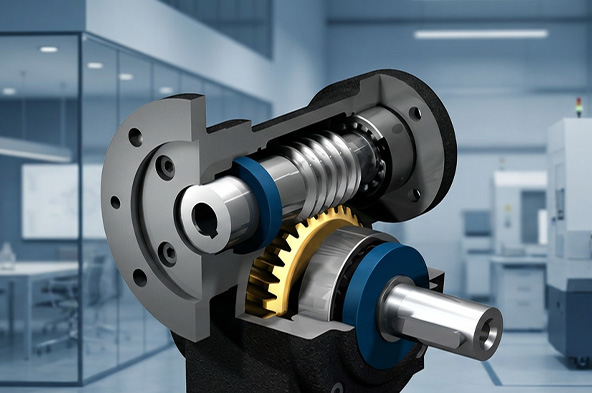

In gearboxes, locking systems are used to ensure a secure mechanical connection between the motor, shaft, and gears. These connections guarantee the lossless transmission of torque and prevent components from shifting during operation. The right locking system not only provides assembly safety, but also offers ease of maintenance and long service life.
|
Taper Locks Features: Provide a tight grip on the shaft through a tapered sleeve and hub system. Advantages: Easy assembly/disassembly, high torque transmission. Application Area: Pulley, gear, and coupling connections. |
Shrink Disk Locks Features:Provide connection by creating friction force between the shaft and the hub. Advantages: High torque capacity, eliminates the need for milling or keyway cutting. Application Area: Heavy industry, high-load applications. |
Key and Keyway Connections Features: Torque transmission through a metal piece placed into the slot opened in the shaft and hub. Advantages: Simple, economical, widely used. Application Area: Standard industrial machinery. |
|
Clamping Elements Features: Grip the shaft with radial force created by bolt tightening. Advantages: Fast assembly, easy adjustment. Application Area: Systems requiring precise adjustment. |
Special Locking Systems Features: Application-specific, high-security designs. Advantages: Maximum compatibility, safety, and durability. Application Area: Defense, mining, and energy projects. |
 |
|
Torque Capacity: It should be suitable for the maximum torque that the application needs to transmit. |
Ease of Mounting: It contributes to faster maintenance and replacement operations. |
Shaft and Hub Compatibility Dimensions: It should comply with precise tolerances. |
Operating Environment: Protection against humidity, dust, and chemical effects. |
Vibration Resistance: It should reduce the risk of loosening in high-vibration environments. |
|
Remak Academy’s Comment:“The performance of a gearbox depends not only on gear quality, but also on the reliability of the connections that transmit torque. The right locking system means both safety and efficiency.” |
