GENERAL FEATURES

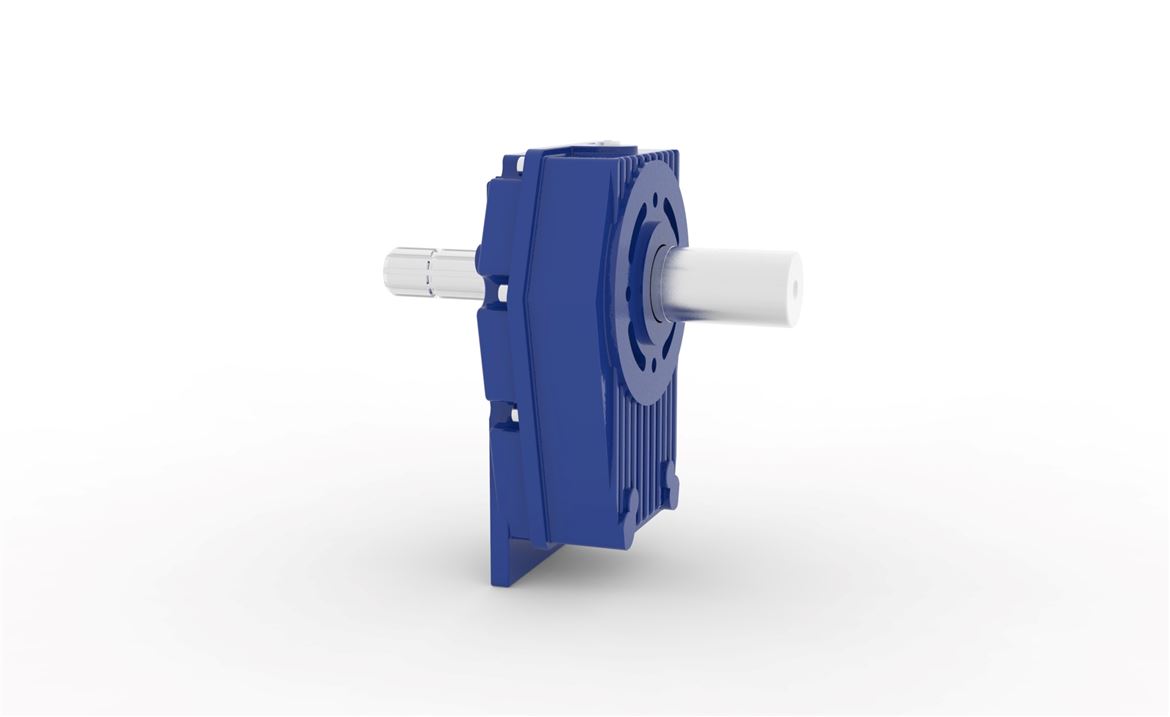

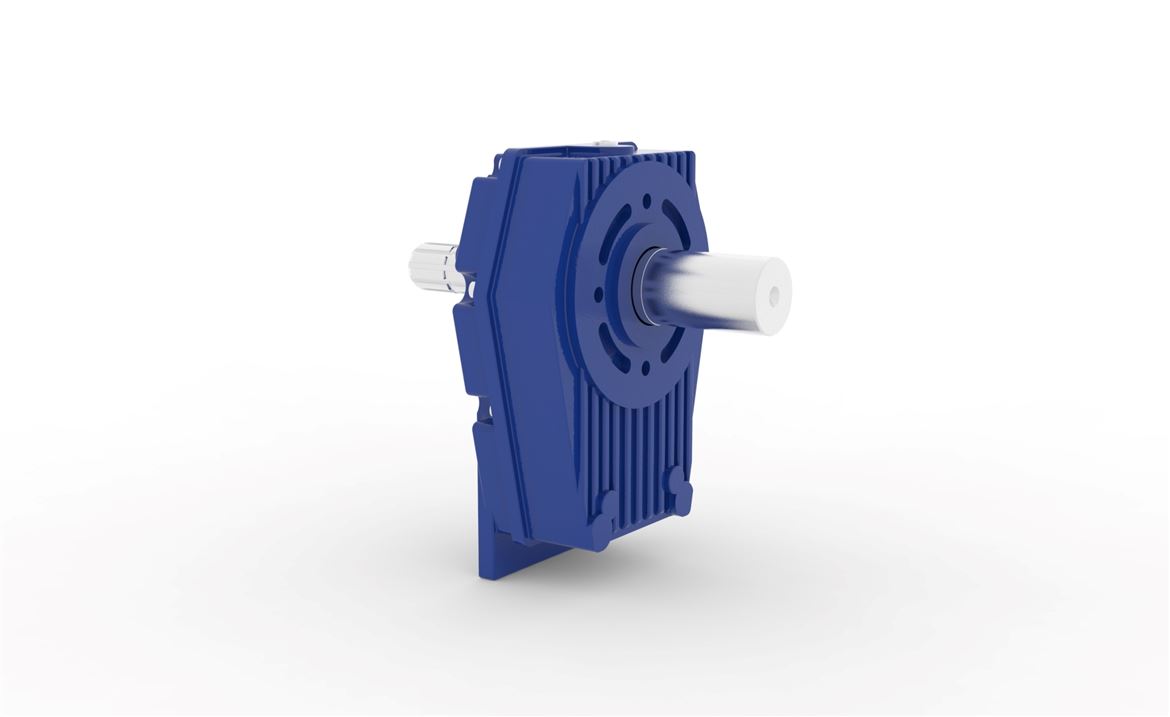

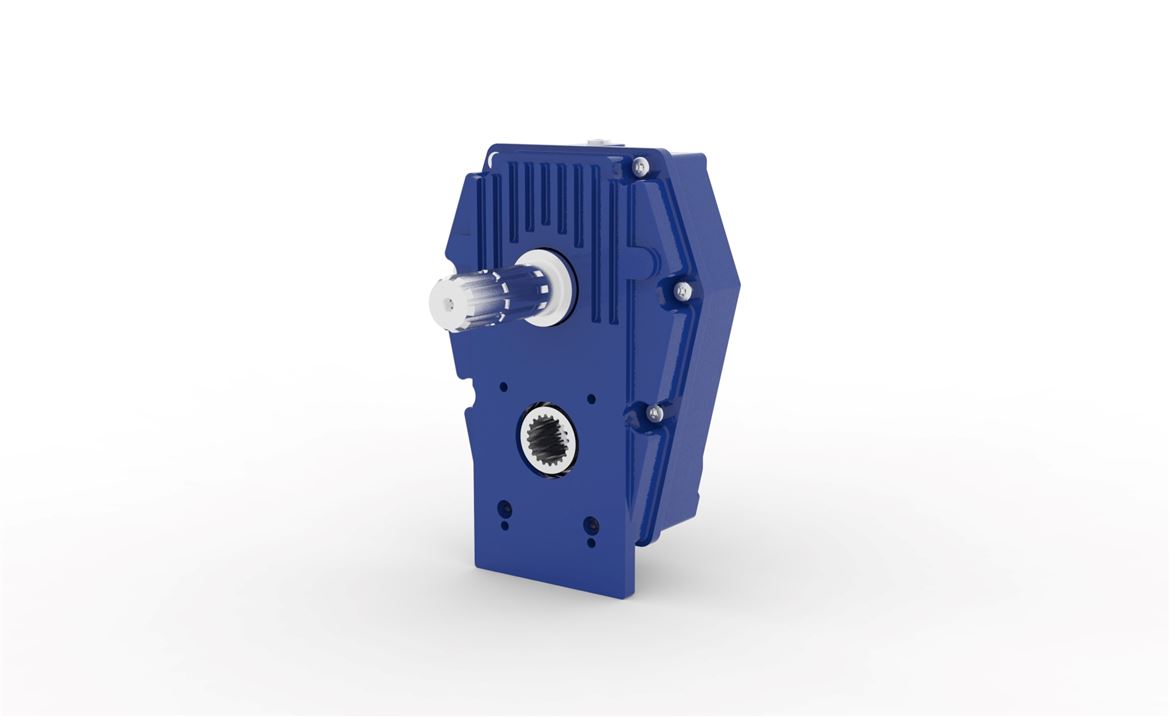

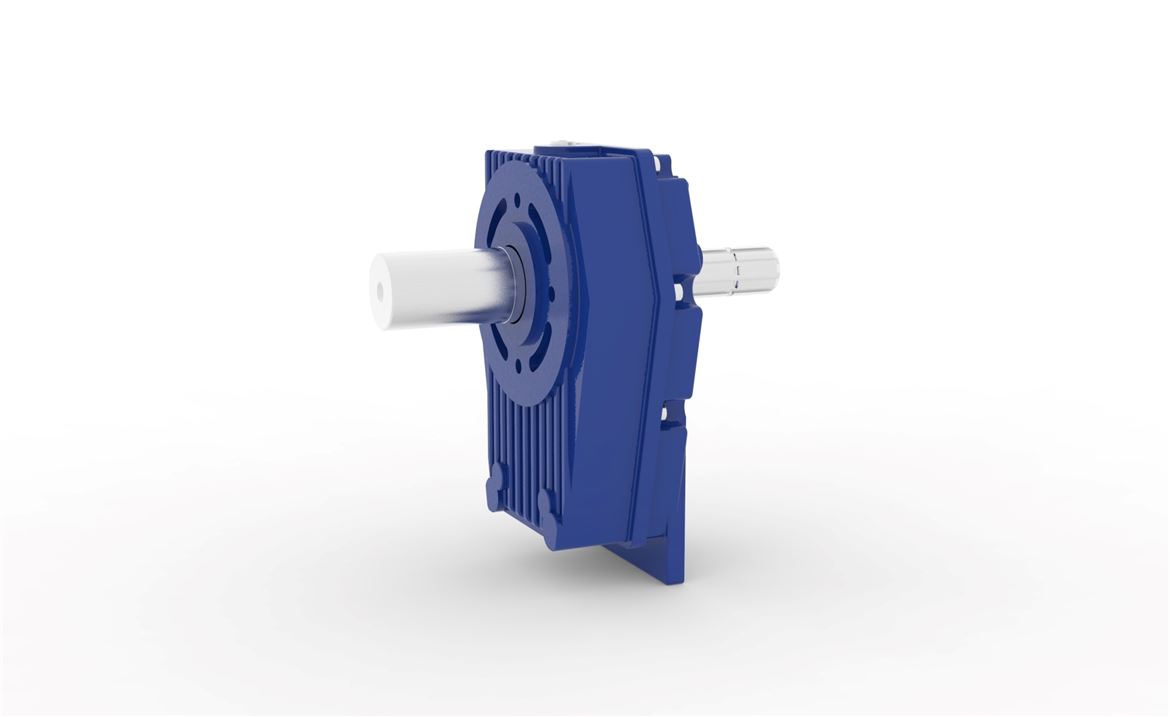

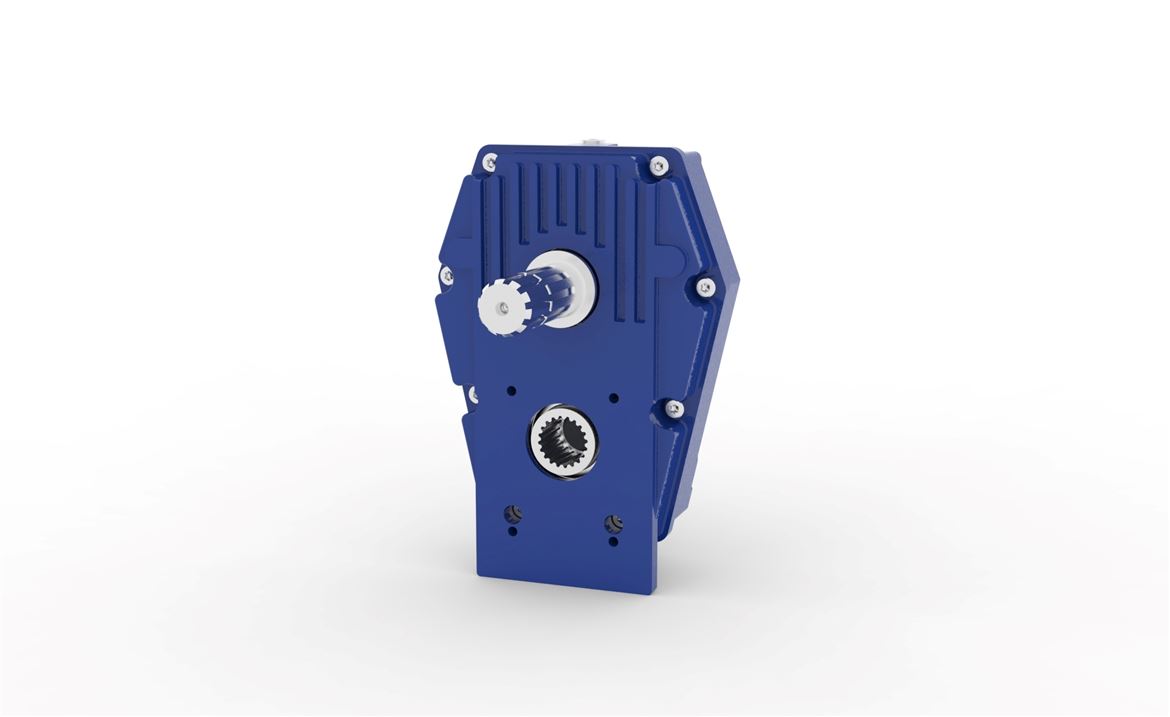

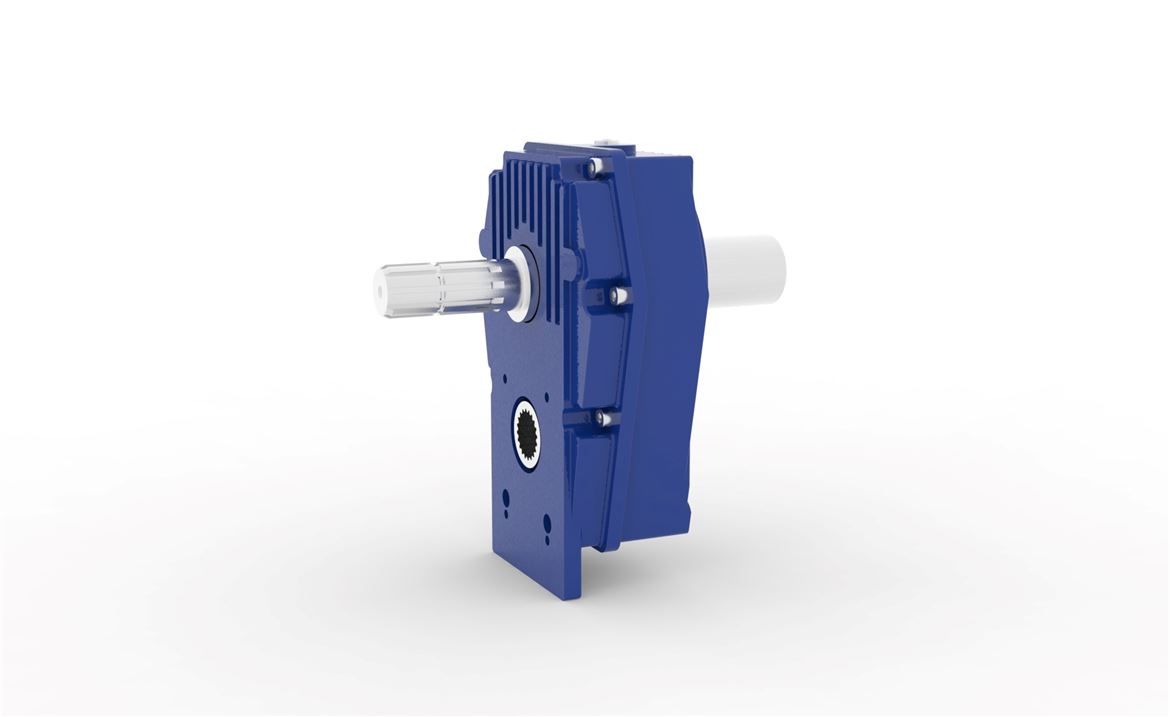

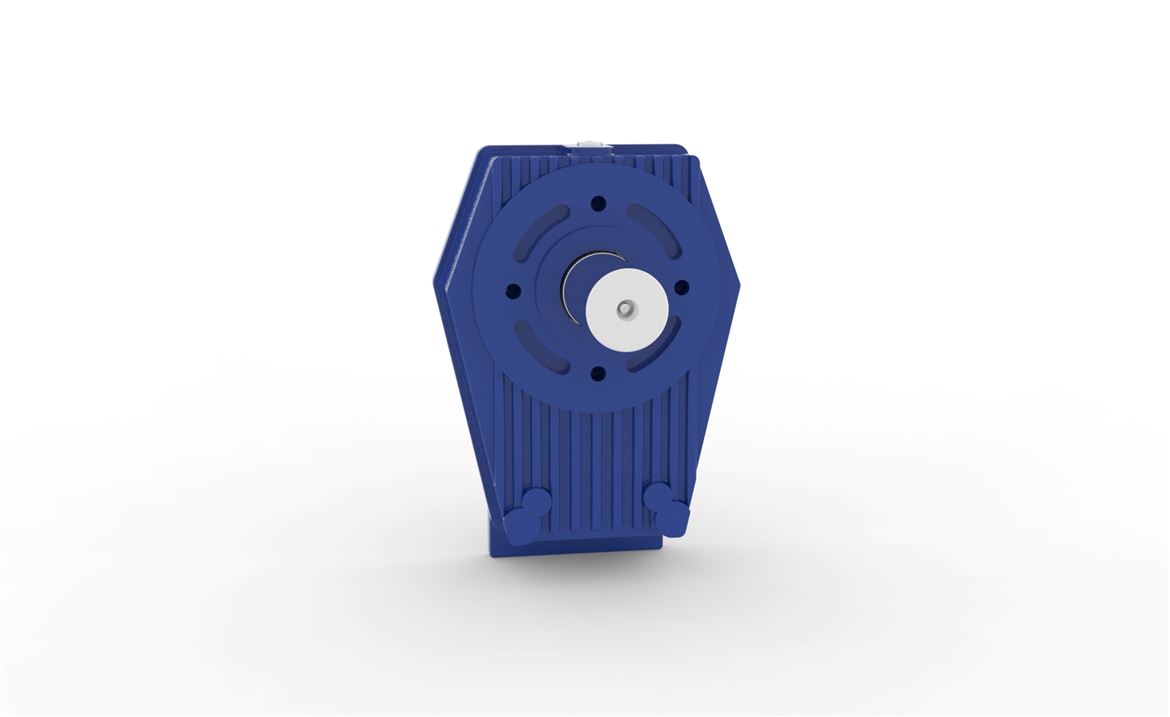

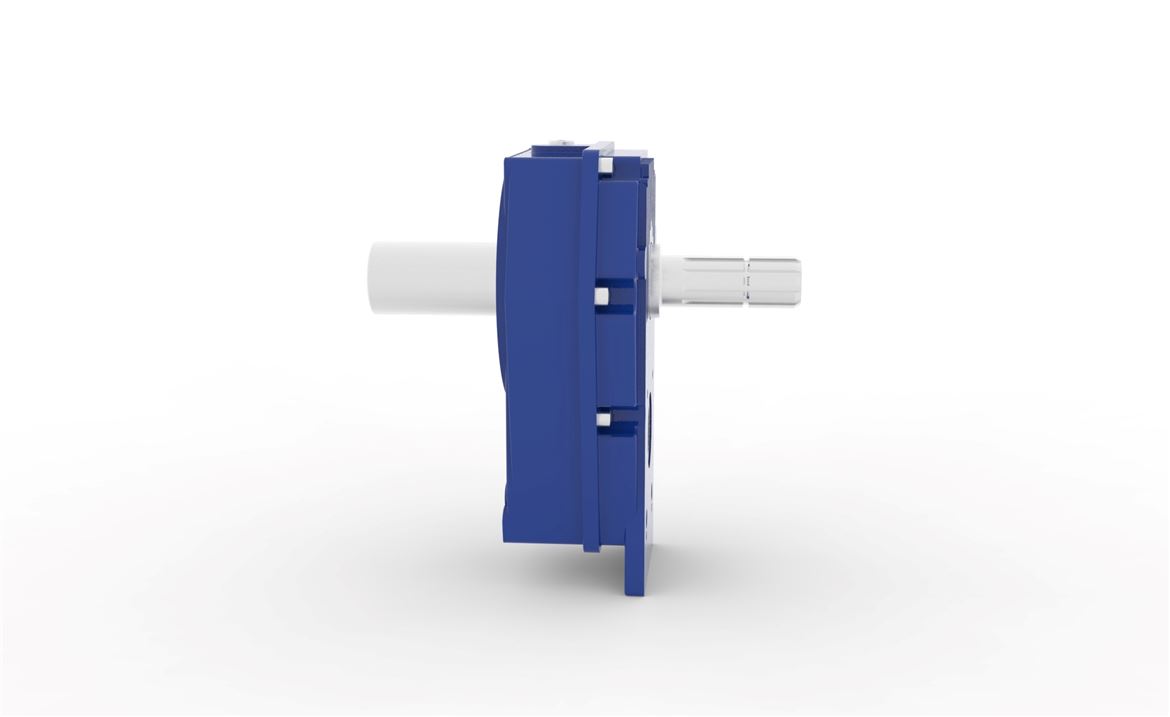

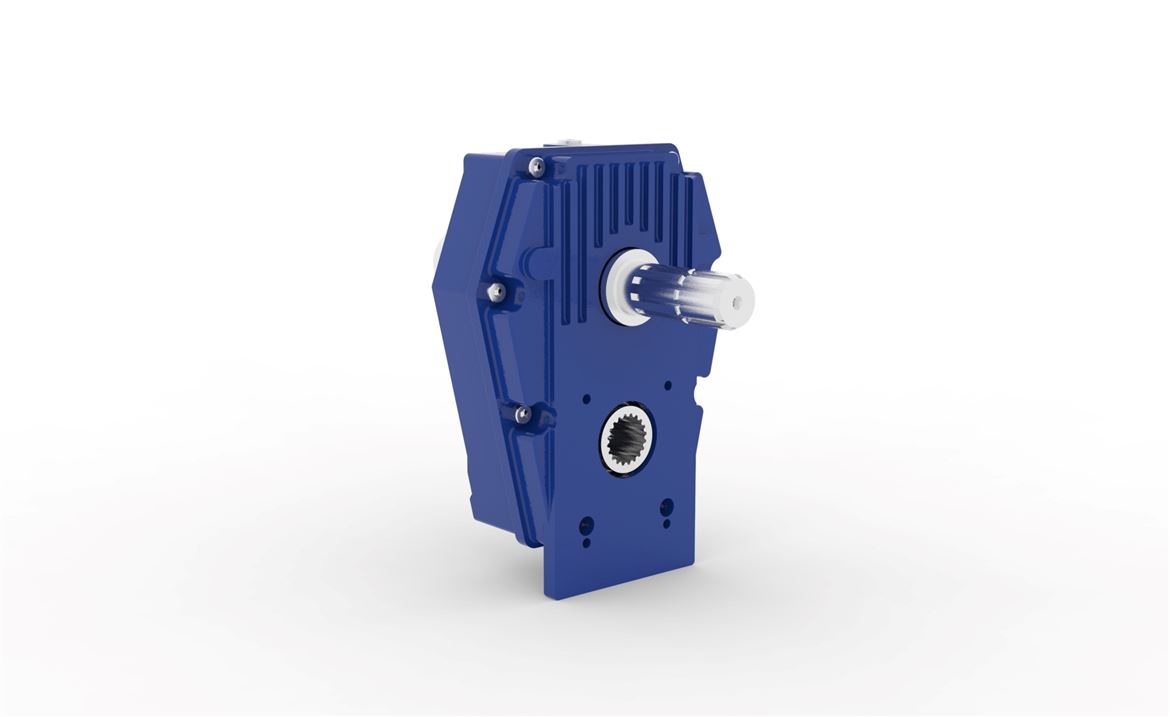

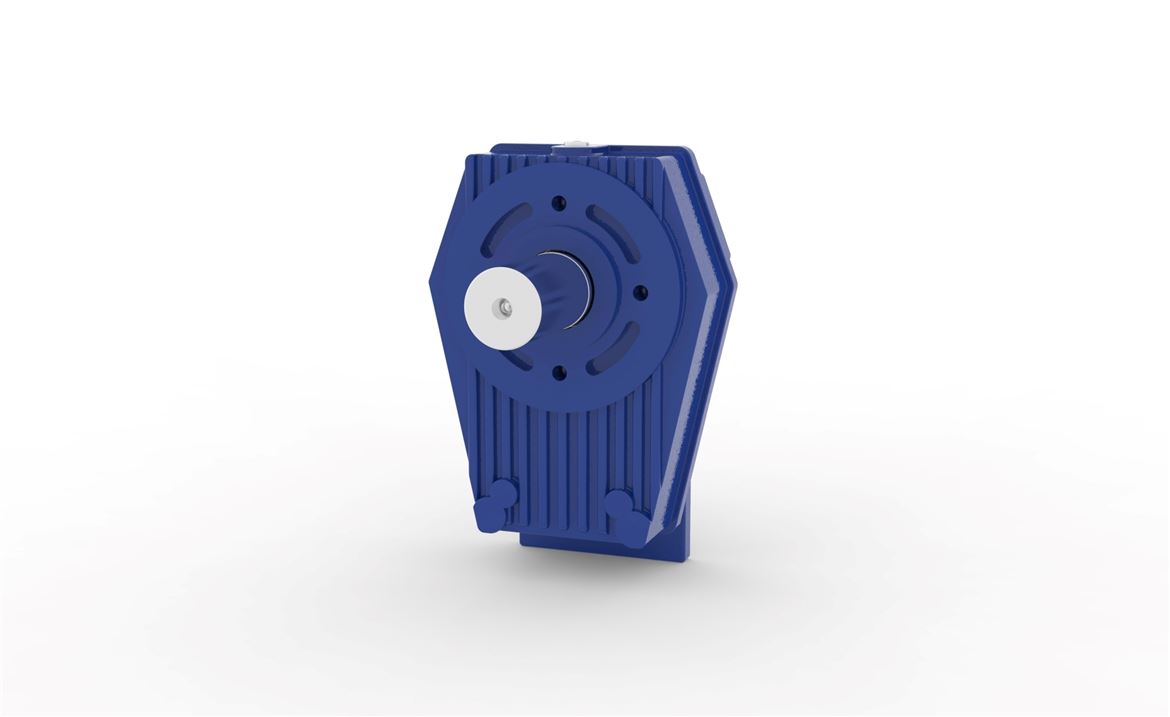

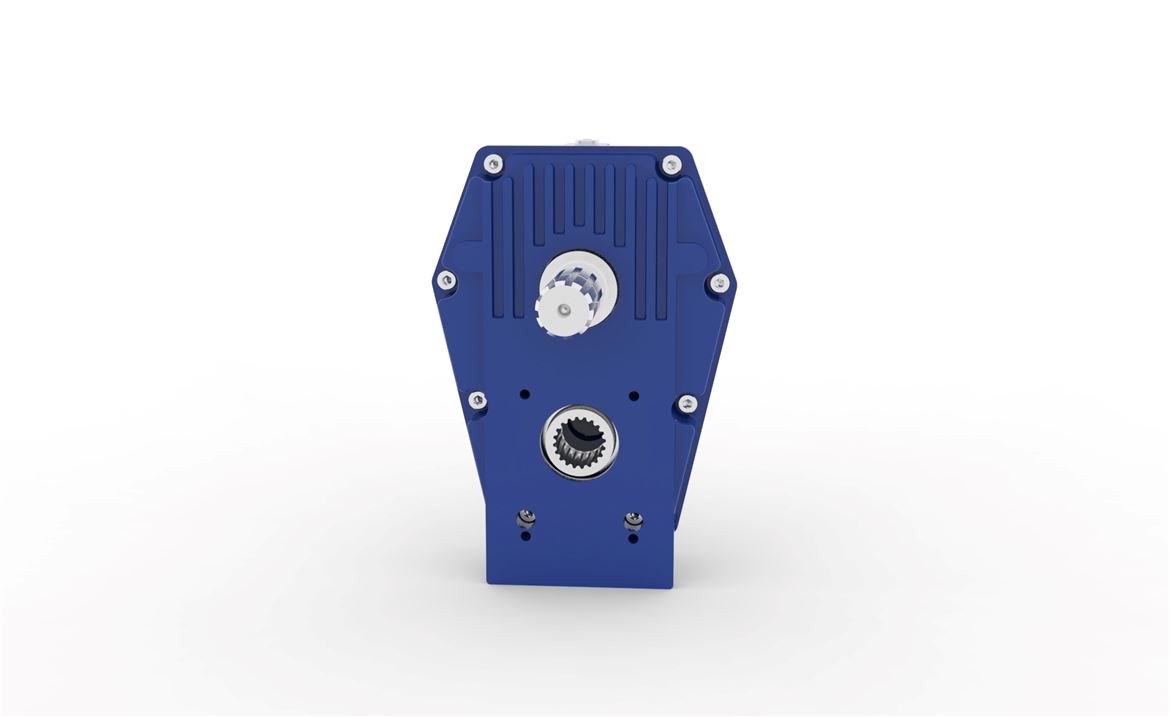

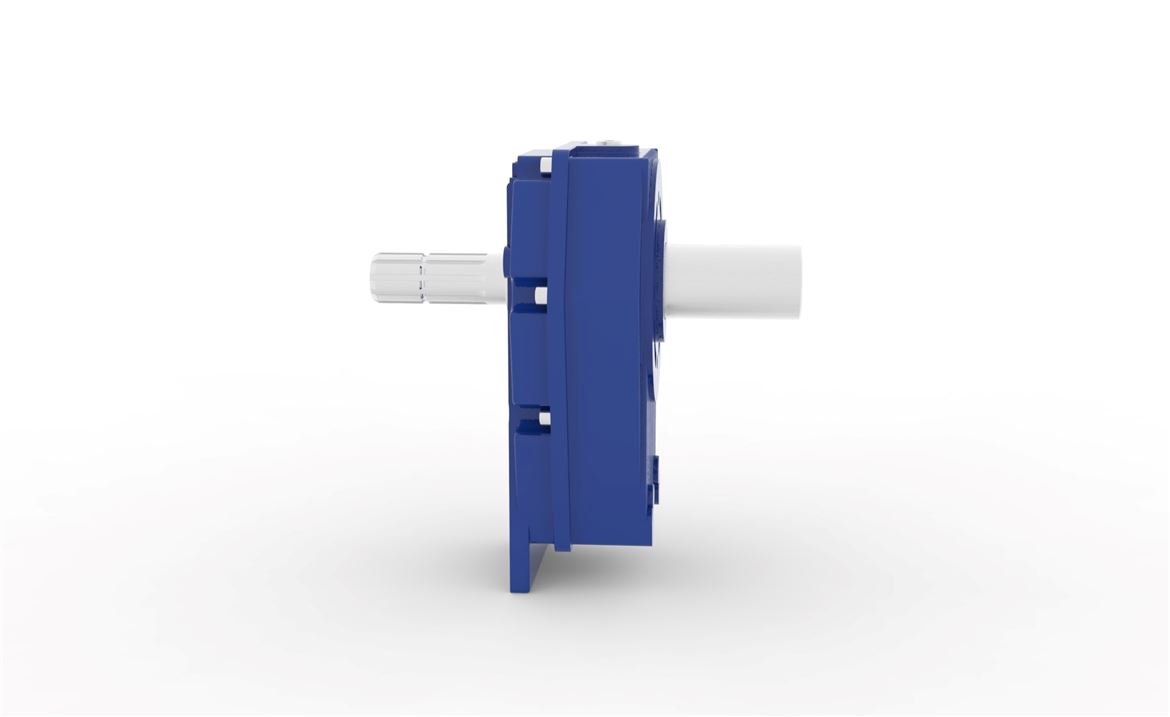

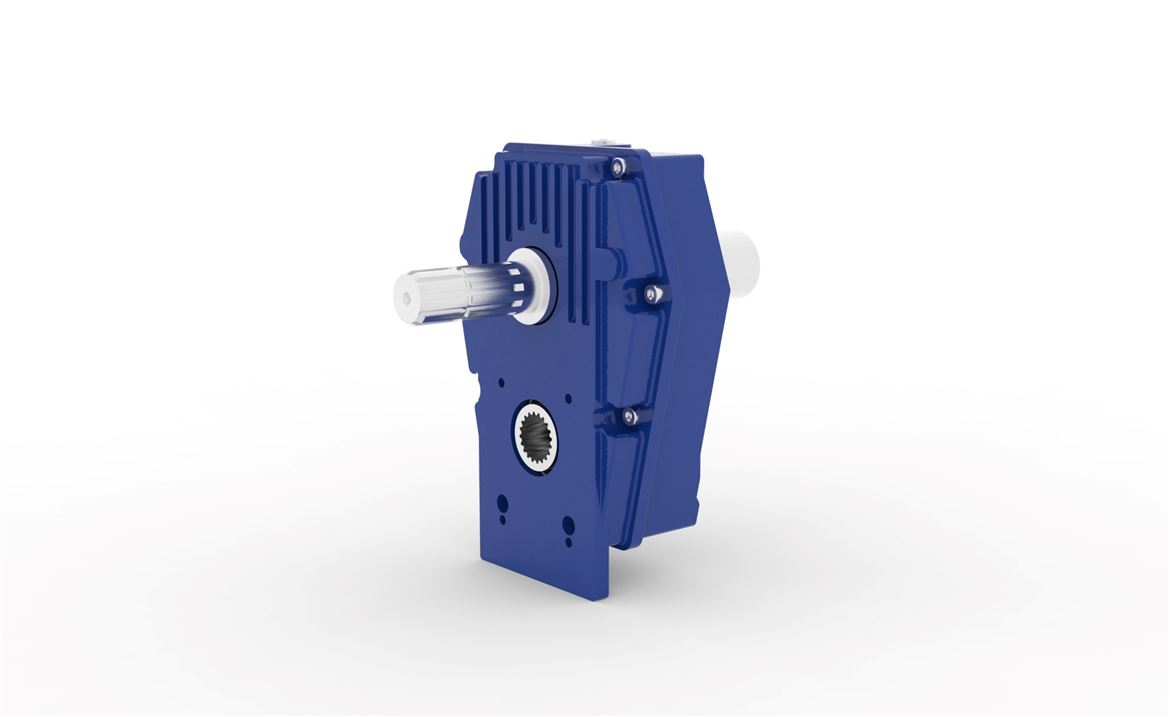

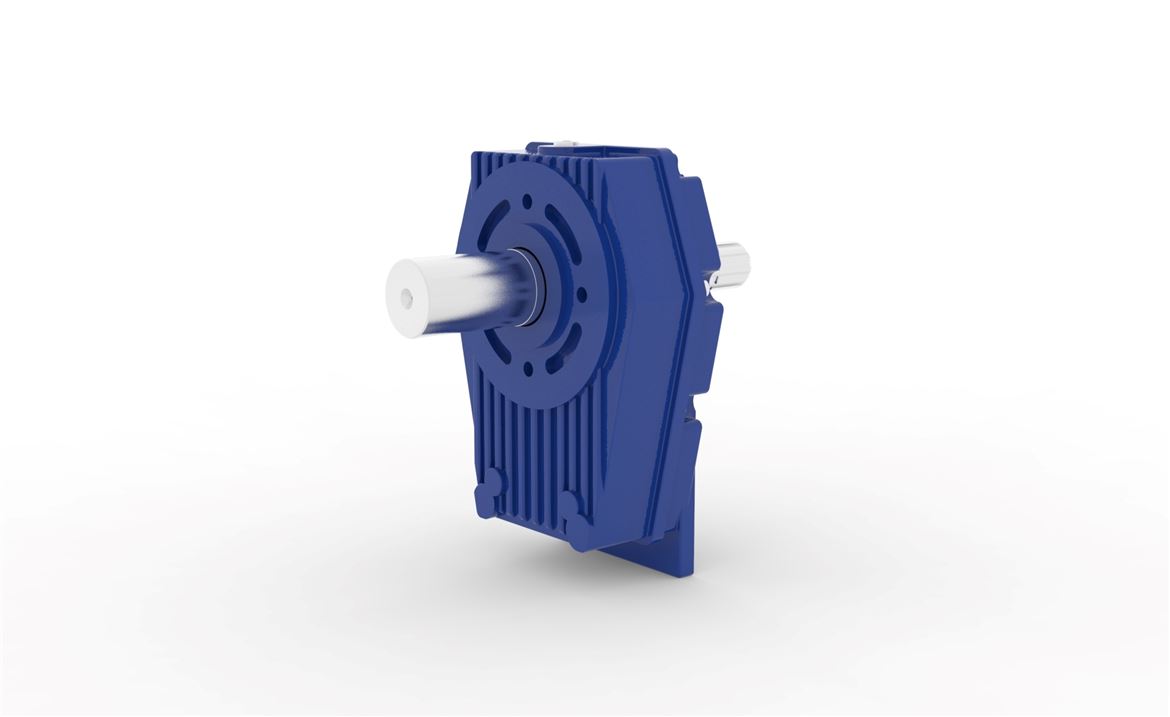

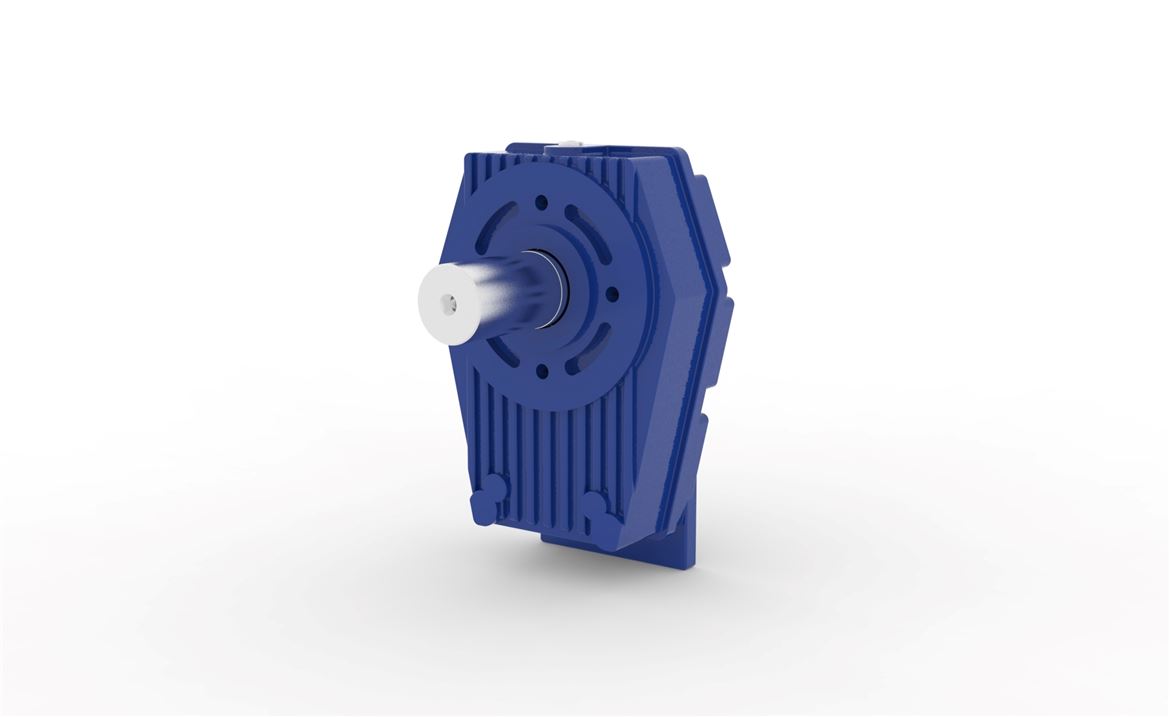

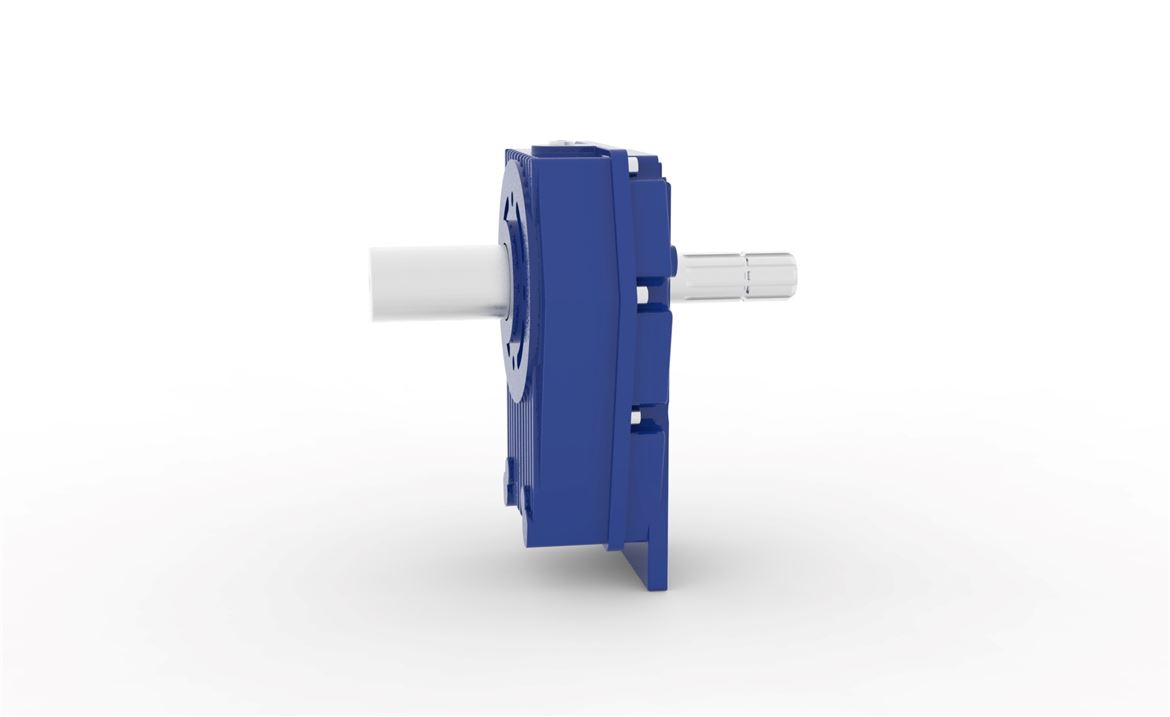

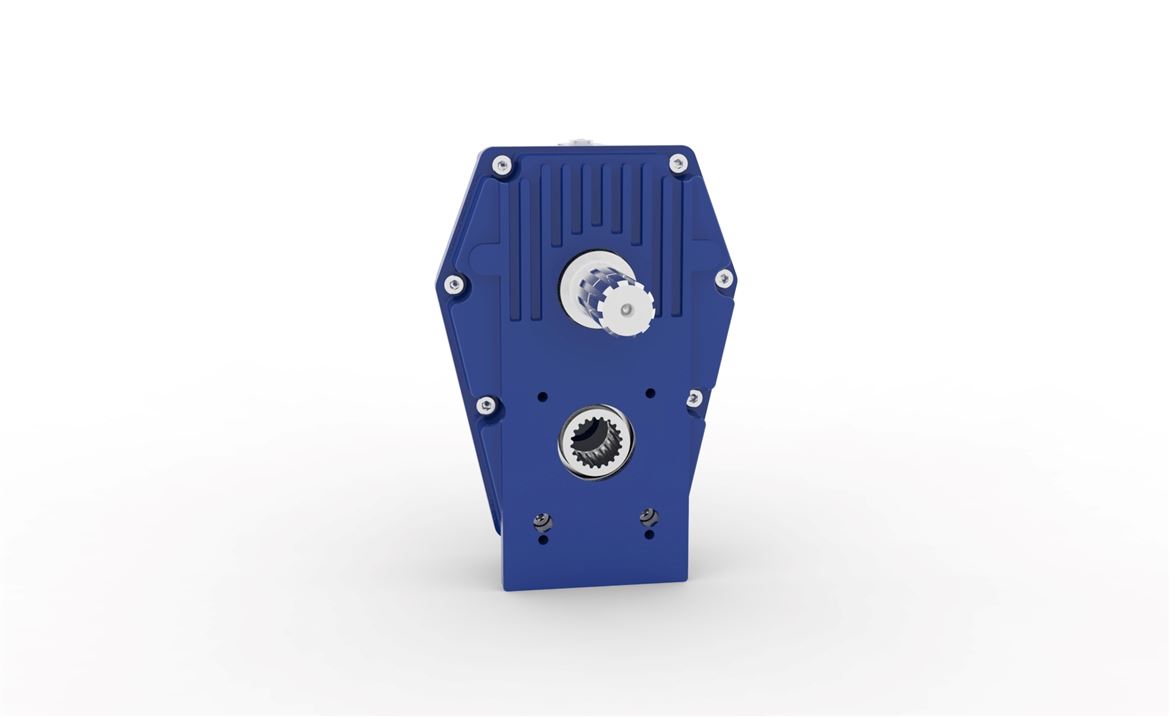

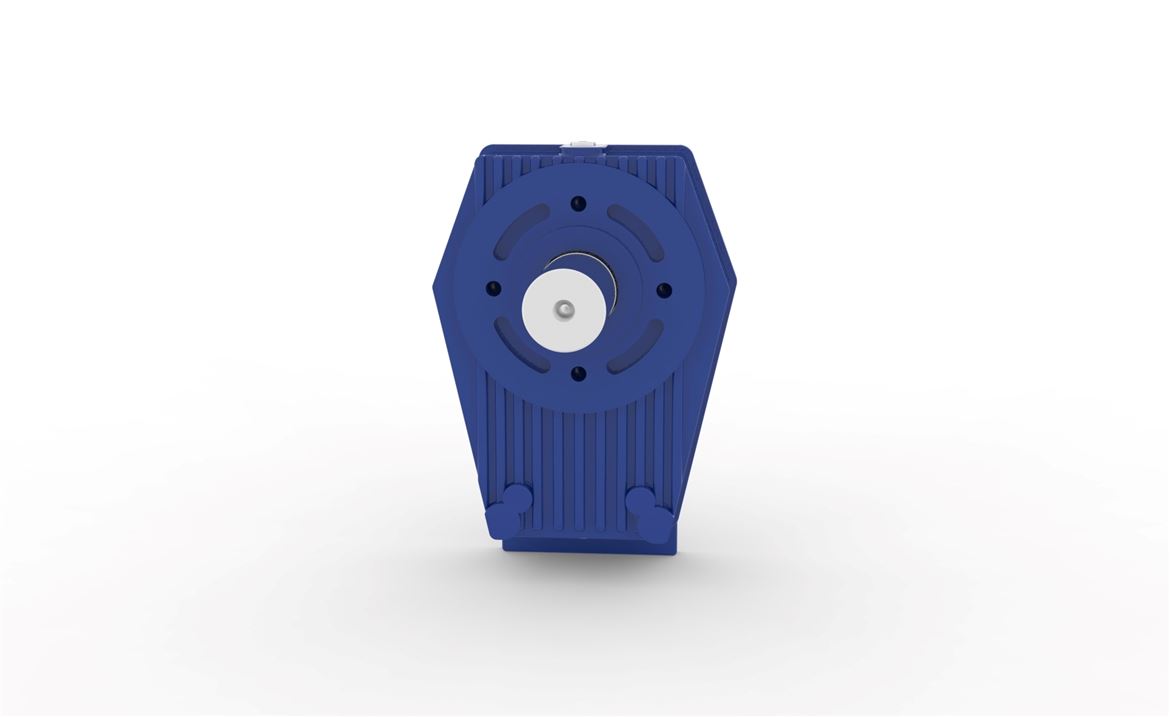

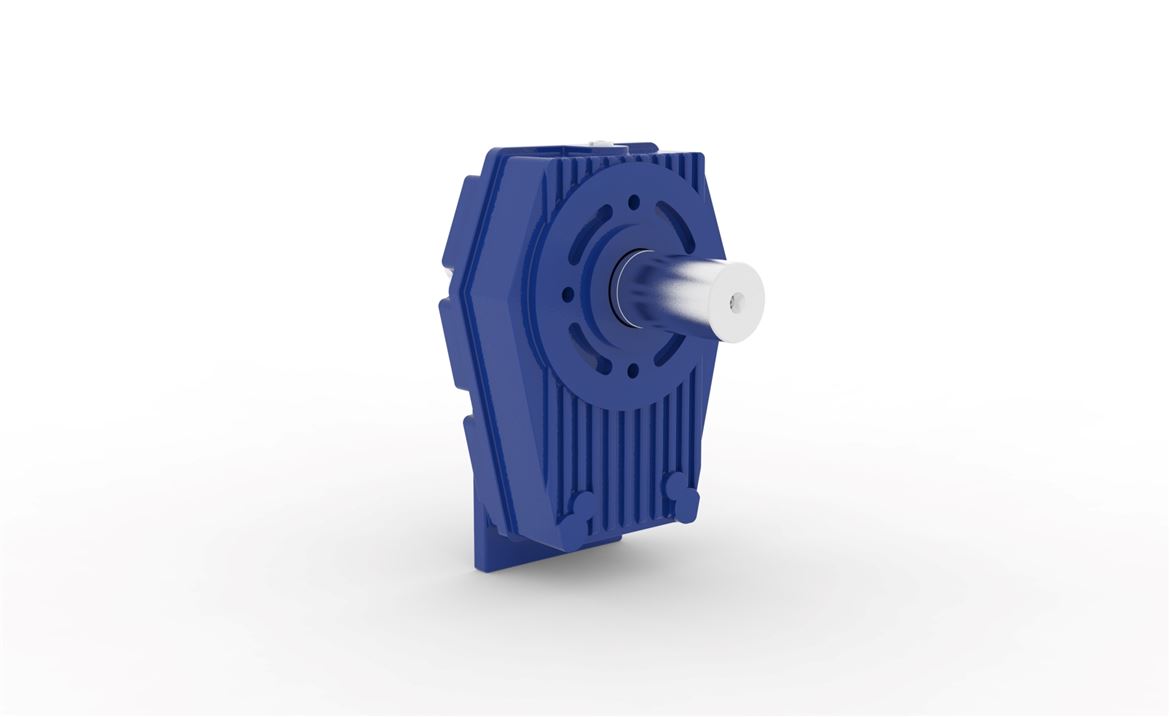

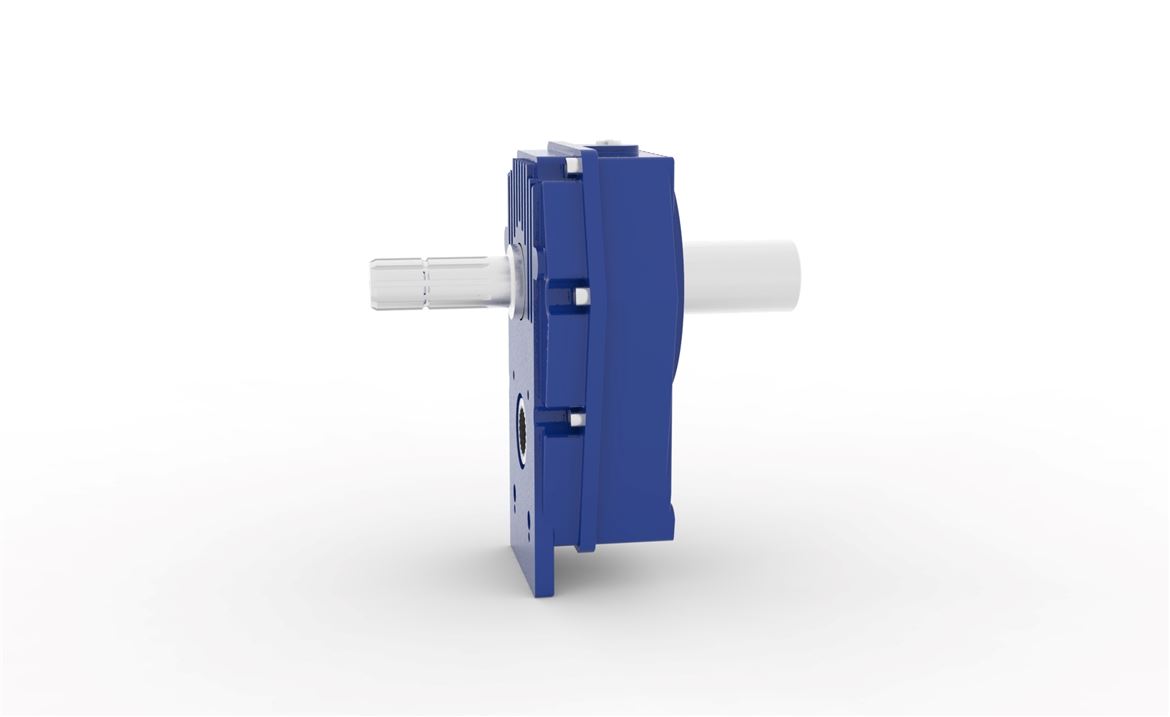

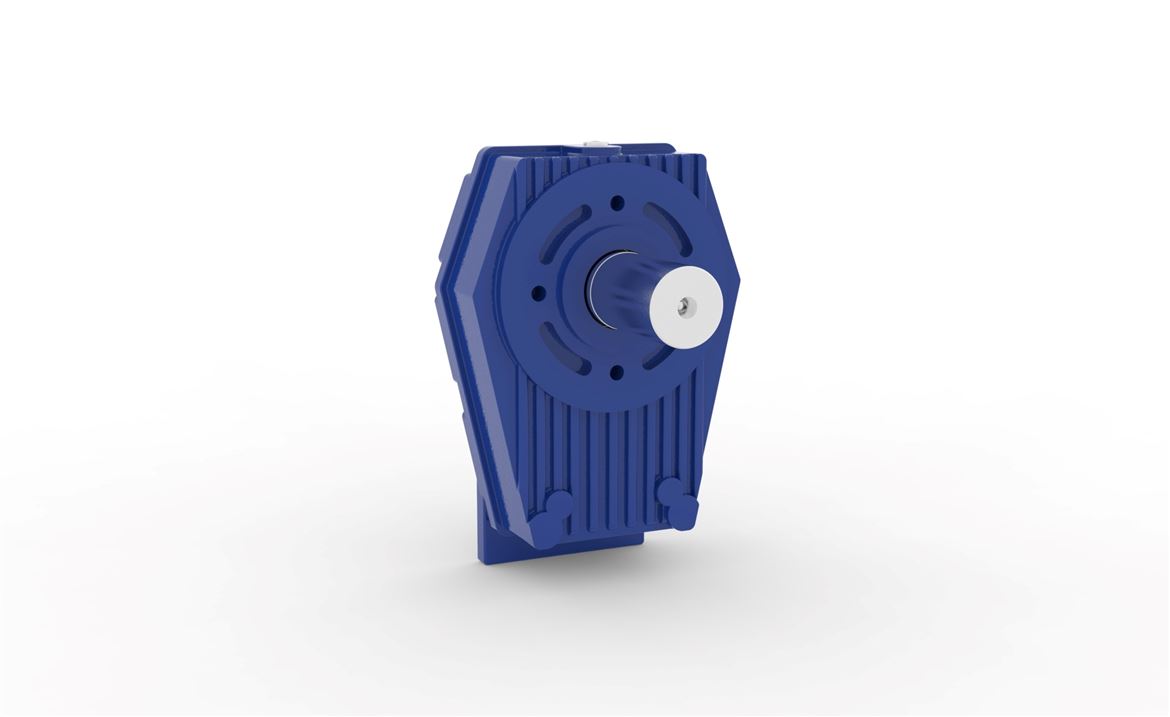

This special gearbox series, featuring an aluminum housing, helical gears, and a parallel-axis structure, is particularly preferred in applications requiring direct connection to the planetary stages of feed mixer machines. Thanks to its lightweight structure, high efficiency, and maintenance-friendly design, it delivers reliable performance in demanding agricultural and industrial environments.

They are helical gearboxes with parallel input and output axes.

They are manufactured with an aluminum housing thanks to their compact and lightweight structure.

They are specifically designed for connection to the planetary stages of feed mixer machines.

The input connection is generally in the form of a free shaft and can be used with belt-pulley or chain drive systems.

The gears are manufactured from forged steel and are heat-treated with 21NiCrMo2 case-hardening steel. Cast iron (GG 20–25) is used as the housing material.

High-quality bearings and sealing elements are used, ensuring long service life and low-maintenance operation.

The system design is carried out in accordance with ISO, DIN, and NIEMANN standards.

TORQUE AND RATIO INFORMATION
